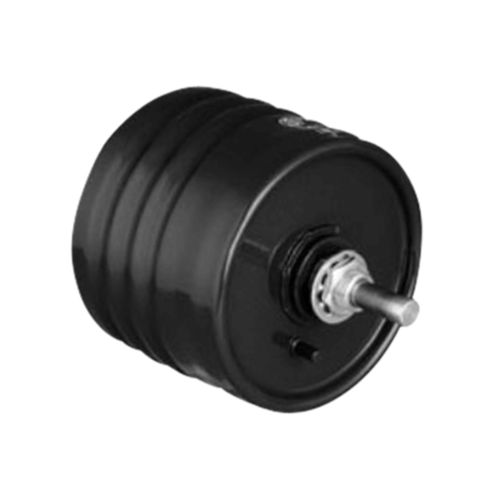

Rotary potentiometer OF50

manualwire-woundwire-wound

OF50 Oil-filled Potentiometer Wirewound (Bushingmount) with excellent lifetime and high durability About the OF50 Oil-filled Potentiometer The OF50 is a general purpose type potentiometer with a stopper and is suitable for high-voltage use. Features Oil-Filled Potentiometer OF50 Dimensions (mm) DxL: 62×50 Shaft Dia. (mm): 5 Independent linearity (±%): 1.0 to 0.5 Mechanical travel (+10° 0°): 300°±5° Electrical travel (±5°): 280°±5° Special specifications available Extra taps (available up to 1 tap), multi-ganged (available up to 2 gangs), special electrical travel, shaft dia. (ø 6.35mm) · bushing with inch dimensions, special machining on the shaft, without stopper (electrical travel remains 280º ±5º, shaft with front and rear extension (rear shaft with 6mm dia. and 25mm length).
