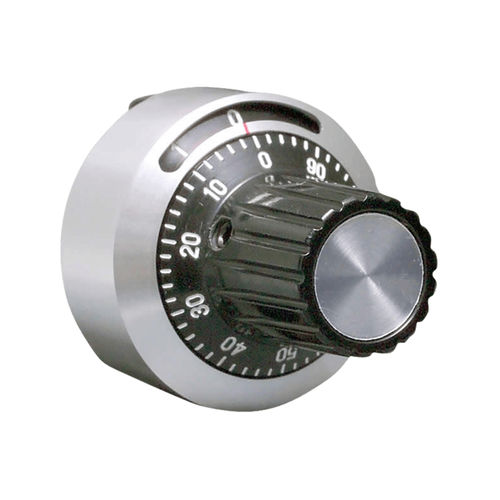

Multi-turn potentiometer MB series

manualanalog

MB Turns-counting Dials Analog Type Potentiometer Turns-counting Dials Potentiometer with Analog-Readout About the MB Turns-counting Dials Analog Type Potentiometer The MB model has a window of read-out that is larger for easy reading. Turns-counting dials Potentiometers are designed for use with Helicalohm Potentiometers and multi-turn potentiometers. They have a elegant appearance and rigid construction offering an easy reading, smooth rotation and accurate counting. Features Model MB Read-out: Analog Outer dimensions (mm): 26 Max. Number of turns-counting: 1010 Macthing shaft dia. (mm): 3, 3.175, 4, 6, 6.35 Lock device: Yes Special Specifications Available Special colors on housing and spin plate on top of the knob (black, etc). How to mount MB Series In case of mounting Model MB Series counting dials on Helicalohm pot., the mounting adaptor of these counting dials and Helicalohm potentiometers are fixed on the panel according to the illustration given above. The shaft of the Helicalohm Pot. is turned anticlockwise to its limit and is put into the mounting hole of the dial which was already set at "0". The shaft of the Helicalohm pot. is secured by the screw positioned on the knob of the dial. With this, the mounting is completed. Mounting Adaptor for use with MB Series The inner diameters of the mounting adapter is different to the diameters of the shaft of the potentiometers to be mounted and therefore, please use the mounting adaptor supplied with the dial itself.
