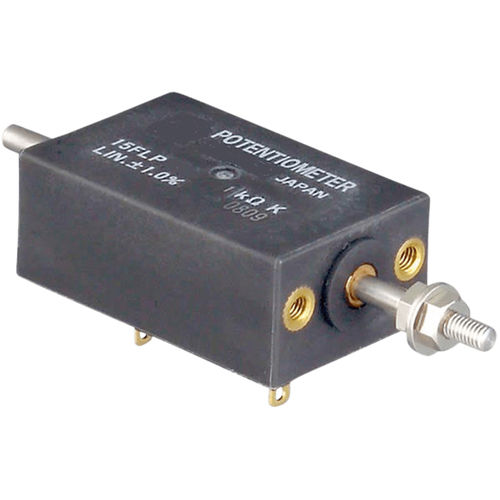

15FLP Series Linear Potentiometer
Conductive Plastic Model with front and rear extended shaft
About the 15FLP Series Linear Potentiometer
The 15FLP is a low-cost item with a thread at the end of shaft and short stroke from 10mm to 30mm.
Features 15FLP
Measurement range: between 15mm and 30 mm
Resistance value: between 500 to 10kO
Linearity tolerance: ±2%, ±1% or ±0.5%
Body dimensions (mm): 15x24x (depends on the type of linear potentiometer)
In the Linear potentiometer 15FLPA series we have the following types available:, 15FLP10A, 15FLP15A, 15FLP20A and 15FLP30A.
For type specific details, please contact us.
Special Specifications Available
Spring return device incorporated (friction is approx. 3N [300gf], special machining on the shaft.
