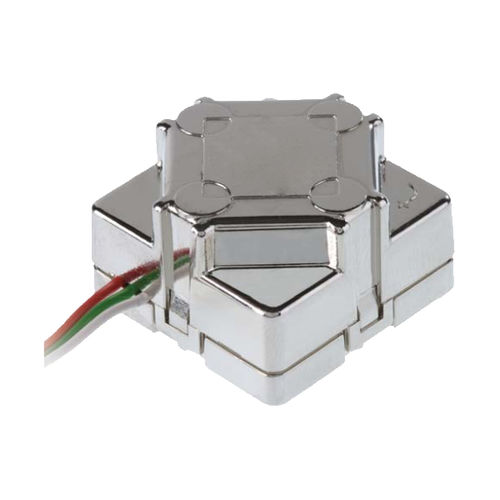

MEMS gyroscope CRS43

single-axis

'Drop-in', low-cost single-axis MEMS gyros Key features CRS43 High performance single axis MEMS gyroscope 5th generation VSG technology Dynamic Range ±100°/s and ±200°/s 4.75 to 5.25V supply Wide operating temperature range -40°C to +85°C Excellent performance over temperature Repeatable drift characteristic Low noise High shock and vibration operation High reliability Metalised housing RoHS compliant About the CRS43 Gyroscope A robust and affordable mass-produced gyroscope for industrial and commercial applications. Angular rate sensors are used wherever rate of turn sensing is required without a fixed point of reference. The sensor will output a DC voltage proportional to the rate of turn and input voltage. High performance motion sensing even under severe shock and vibration. CRS43 has been developed to offer existing CRS03 customers a low cost, ‘drop-in’ alternative. Silicon Sensing’s highly successful VSG5 (fifth generation Vibrating Structure ring Gyroscope) precision MEMS pro-vides the core angular rate sensing element. Three model types available including; Pin version for PCB mounting Flying lead version for chassis mounting Applications CRS43 Antenna and Platform Stabilisation Precision Agriculture Autonomous vehicles and ROVs Attitude measurement systems Personal navigation GPS drop-out Aiding
