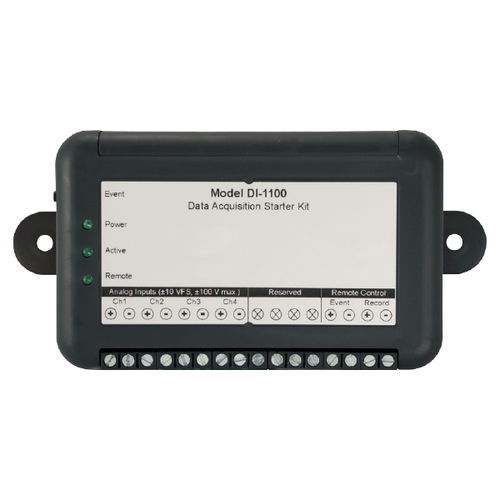

Data Acquisition USB DAQ and Data Logger System, 12-bit, 80 kHz
Key features DI-1100
Includes a DI-1100 instrument, a 6-foot USB cable, a screwdriver for signal connections, and downloadable WinDaq software
Direct replacement for the DI-145 data acquisition start kit
Low-cost, Compact USB Data Acquisition Starter Kit
Four ±10 V Differential Analog Inputs
12-bit Resolution
High sample rates per channel (dependent on the number of channels enabled):
40 kHz, 1 enabled channel
30 kHz, 2 enabled channels
24 kHz, 3 enabled channels
20 kHz, 4 enabled channels
2 Dedicated Digital Inputs
Analog inputs are protected to ±100 V
Digital inputs are protected to ±30 VDC or peak AC
Provided with WinDaq Software
.NET class and protocol provided for development in non-Windows operating systems
CE approved
About the DI-1100 Starter-Kit
Hardware Overview
The DI-1100 is a new release in a long line of low-cost starter kits from DATAQ Instruments. It’s an updated replacement and alternative for the DI-145 USB data acquisition starter kit. Suitable for measuring preamplified analog signals, the DI-1100 in tandem with the included WinDaq software allows real time data acquisition, playback, and analysis performance equal to or better than other products that cost many times its low price. Predecessors of this instrument have been sold to over 35,000 hobbyists and professionals for countless data acquisition applications around the world.
