Signal amplifier TLB

poweranalogdigital

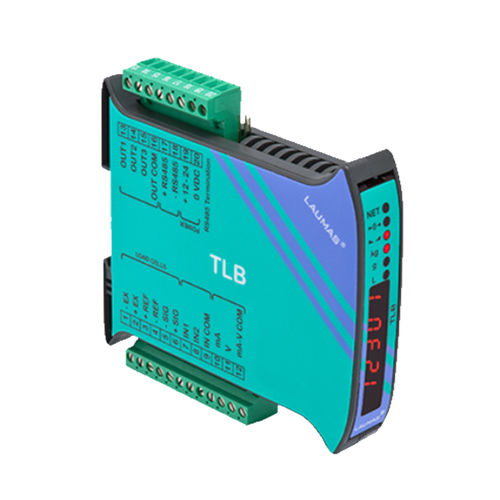

About the TLB Digital Amplifier Weight amplifier and indicator for Omega/DIN rail mounting suitable for back panel; space-saving vertical shape. Key features TLB • Six-digit semialphanumeric display (height 8 mm), 7 segment LED • Four buttons • Dimensions: 25 x 115 x 120 mm The instrument is equipped with a RS485 serial port and an analog output: • RS485 for connection to: • - PC/PLC up to 32 instruments (max 99 with line repeaters) by ASCII Laumas protocol (compatible with W60000) or ModBus RTU Protocol • - Remote display • Optoisolated analog output 16 bit: 0 ... 20 mA; 4 ... 20 mA (max 300 Ohm); 0 ... 10 V; 0 ... 5 V; ±10 V; ±5 V (min 10 kOhm). Theoretical calibration by using buttons. Specifications Power supply and consumption: 12 - 24 VDC ±10 %; 5 W Number of load cells (parallel and supply) max. 8 (350 Ω); 5 VDC / 120 mA Linearity <0.01% FS Linearity of analog output <0.01% FS A/D converter 24 bit (16000000 points) 4.8 kHz Divisions, max ±999999 Load cell sensitivity, max. ±7 mV/V Digital filter / conversion rate 0.012 - 7 s / 5 - 300 Hz Logic relay outputs 3x - max. 115 VAC / 150 mA Logic inputs 2x - optoisolated 5 - 24 VDC PNP RS485 port - baud rate 2400, 4800, 9600, 19200, 38400, 115200
