Position indicator TD-700T

currentDCpressure

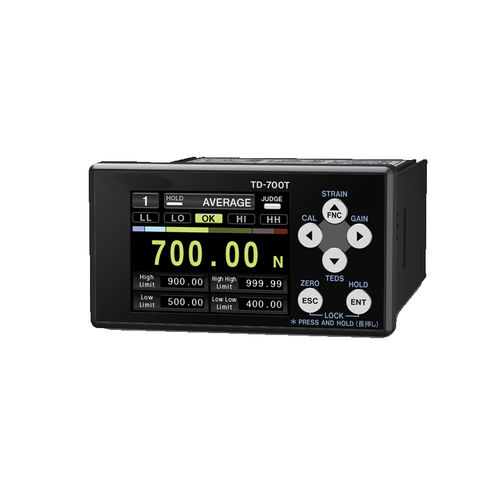

Digital indicator to measure and display physical quantity such as load, pressure and torque About the TD-700T TD-700T is a digital indicator to measure and display physical quantity such as load, pressure, and torque working with strain gauge transducer. Color graphic LCD display, high-speed sampling, TEDS function (IEEE1451.4 class 2 mix mode interface compliance) and various hold functions are combined into this compact panel mount display (1/8 DIN size). The TD-700T provides the best performance in the various scenes. Applications • Press loading control of press fitting • Management of tip press load of SMT nozzle Features of the TD-700T • High performance color graphic LCD Screen • High-speed processing • TEDS function(Automatic Calibration) • Static Strain Disp. Mode • Waveform & Bar meter display function • Variety of data hold function • CC-Link / RS-485 option • User friendly warnings • Remote Sense Function • Zero Position Bar Graph Settings • Compact body Specifications Bridge Voltage 10V DC, 2.5 V ±10% (30mA current maximum, remote sense can be used) Signal input range ±3.2 mV/V Calibration range 0.3 mV/V–3.2 mV/V Calibration precision Within 0.1% F.S. (when using a 1m standard TEAC Φ8, 4-core shielded cable with 350Ω impedance, 10V BV and 0.5mV/V or greater setting) Non-linearity Within 0.01% F.S. + 1 digit (when input is 1 mV/V or greater) Zero drift Within 0.5 μV/°C (input conversion value) Gain drift Within ±0.005% F.S./°C A/D conversion 24-bit, 4000 times per second, 20000 times per second (fast sampling mode)
