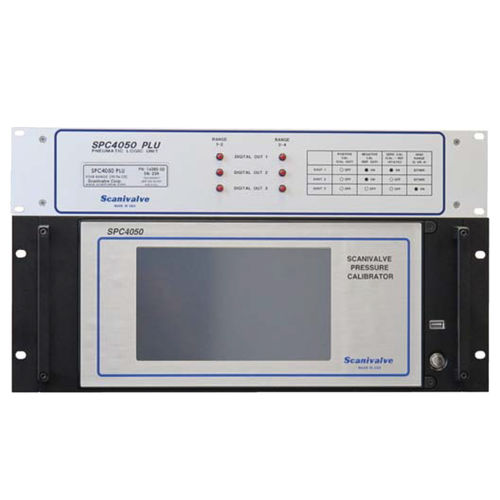

Pressure calibrator SPC4050

precisionpneumaticmanual

Provides automated calibration of Scanivalve DSA, ZOC, and MPS series pressure scanners About the SPC4050 Pressure Calibrator The SPC4050 pressure calibrator is designed to provide automated calibration of Scanivalve DSA, ZOC, and MPS series pressure scanners. The calibration system consists of 3 components: 1. The heart of the calibration system is the Scanivalve pressure calibrator, model SPC4050. The SPC4050 calibrator has up to two independent precision pressure regulators. Each regulator can have up to two gauge or absolute transducers; thus up to 4 transducers per calibrator. Transducers can be quickly removed for calibration or service. The transducers are Gauge (psig) or Absolute (psia). Full Scale Gauge pressure ranges are available between 0.36 psig and 750 psig. 2. Scanivalve’s Pneumatic Logic Unit (SPCPLU) is required for automated DSA, ZOC, and MPS calibrations. This unit contains the pneumatic solenoid valves and manifolds required to perform single or multi-range calibrations, as well as zero offset corrections. 3. A utility program, PressCal is included with the SPC4050. It performs automated or manual calibrations on all DSA and ZOC pressure scanners by controlling the pressure calibrator and SPCPLU. The PressCal program is hosted in a Windows® environment. PressCal updates the module calibration coefficient files and generates “as received” and calibration validation reports Key features SPC4050 • 0.01% F.S. accuracy • Up to 4 calibration ranges, 0.36 to 750 psig, 0 to 750psia. • Based on Mensor CPC6050 automated pressure calibrator • Removable/interchangeable transducers • Color touch screen • Automated DSA, ZOC, and MPS calibrations
