Analysis software FPD-8010E

measurementcalibrationdevelopment

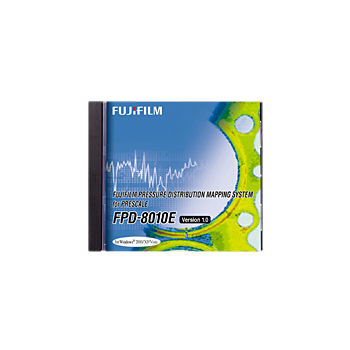

Pressure distribution mapping system About the FPD-8010E Fujifilm Prescale Software Pressure Distribution Mapping System FPD-8010E FPD-8010E provides a wide range of effective presentation and report functions utilizing FPD-8010E software and a scanner to digitize Prescale outputs to allow the user to produce multi-faceted measurement data such as pressure distribution and enlargement, cross-sectional distribution, and 3-D image display. This serves to accelerate product development and improved yields based on detailed multi-faceted measurement data and analysis. Features Fujifilm FPD-8010E Pressure distribution mapping system Including software, dedicated cover and calibration sheet Prescale image input function Pressure distribution display function/Pressure data output function 3D display function/polar coordinate display function Functions Overall Measurement Various data such as average pressure and maximum pressure are displayed. Partial Enlargement The specified field is enlarged. (X 4, X 8, X 16). Pressure Cross Section Pressure distribution on a line passing through a specified point is shown on a line graph. Wire Frame Pressure is displayed in 3-D format. Total Weight Distribution The upper and left segments of the total pressure are displayed on a bar graph. Histogram Analysis Pressure on the circumference is displayed as a histogram. Text Data Output Pressure data is exported to a text file. Pressure Distribution Animation Step-by-step pressure values are displayed in animated format.
