Fixed scaffolding plettac

facadeheavy-dutymodular

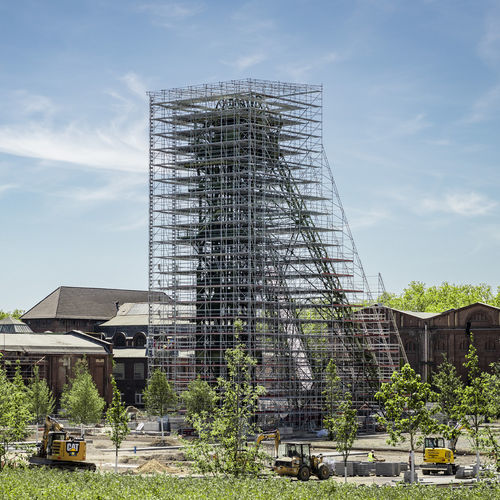

Industrial and civil engineering require adaptable but heavy-duty scaffolding systems. The plettac perforated disk is stress-optimized and allows connection of up to 8 ledgers or diagonals per level with varying angle ratios. This means that the scaffold is flexible enough to be adapted even to the most differentiated building forms and layouts. Moreover, bending moment and shear stress resistance were considerably improved by means of FEA. The scaffold complies with the requirements of the health and safety regulations and has been granted several European licenses as well as Registration No: PFS 6-206209/16 in accordance with Australian and New Zealand Standards AS/NZS 1576.1: 2010 & AS/NZS 1576.3: 2015. plettac corresponds with all aspects of EN 12810 and EN 12811. Your advantages ... up to 8 ledgers/diagonals per level flexible angle set up due to small and large connecting openings only rectangular assembly possible due to connecting heads modular perforated disk, FEA-optimized flat design of perforated disk prevents built-up of plaster, dirt, ice, steel parts etc. positive locking and centric transmission of energy and load application adaptable to a variety of floor plans and building structures due to different anchorage systems large choice of spans available height intervals at every 50 cm special ledgers for SL desks available
