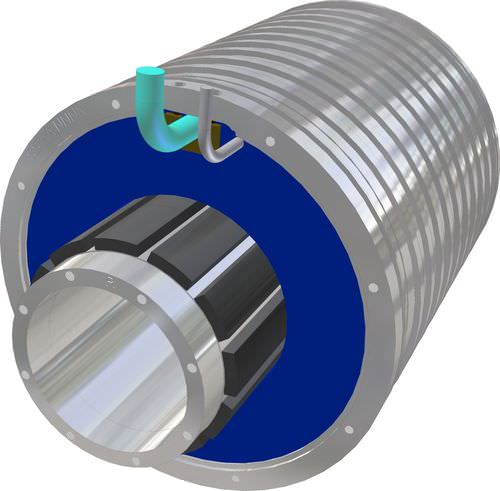

DC motor STK

brushless100 Vpermanent magnet

STK Direct Drive motors have been designed for being integrated at the heart of servomechanisms with the aim to improve the performances of axis control of high torque motors. Thus, the use of ALXION’s Direct Drive frameless torque motors offers adequate solutions regarding the improvement of dynamic performances and accuracy and allows to address applications with demanding constraints on volumes and weights. Main characteristics Continuous torque from 14.6 Nm up to 2708 Nm continuous in natural convection depending on size and up to 6100 Nm in fluid cooling. Six external diameters from 145 mm up to 800 mm. Internal diameter from 56 mm up to 630 mm. Various available windings from 30 rpm up to 1500 rpm depending on type. Rotor non dynamically balanced; if needed balancing has to be made by the user on assembled rotor For environment and integration constraints, please request our STK handbooks for assembly Advantages High dynamics No reducer No backlash High accuracy servo Suppression of maintenance Simplification of servo-mechanism Optimization of servo-mechanism costs Noise reduction Functional optimization and machine simplification
