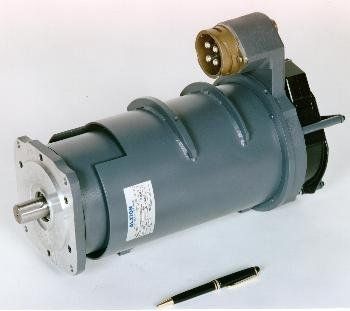

DC motor 136 OEP series

brushlesssynchronous24 V

Permanent magnets brushless motors with high power-to-weight ratio With its highest power-to-weight ratio and torque constant, specially adapted to robots, mobile or borne applications with high power, the 136 OEP motors have been designed thanks to the electromagnetical and thermal optimization achieved by using dedicated simulations softwares, allowing an accurate precharacterization of the behavior in rated load and in overload A rich industrial experience attests to optimal reliability. Main Characteristics # Rare earth magnets # Star three-phase winding # IP64 protection according EC 509 (1989) # Class H insulation # Flange B5 # Thermal protection by PTC resistance housed between 2 phase windings # PTC Security threshold = 180ÝC # 136 OEP 017 and 136 OEP 020: Air cooling with fan 100 l/s, 0.31 A or 24 VDC, 0.5 A. # 136 OEP 050: fluid cooling with integrated external jacket Advantages # 136 OEP 017: 19.5 KW continuous at 6000 RPM # 136 OEP 020: 29 KW continuous at 6000 RPM # 136 OEP 050: 41.5 KW continuous at 6000 RPM High torque constant at 0.85 Nm / Arms. High efficiency: up to 95%. High power-to-weight ratio: 1500 W / Kg continuous. Characteristics of the range # 136 OEP 017 : 19,5 KW permanent à 6000 mn-1 # 136 OEP 020 : 29 KW permanent à 6000 mn-1 # 136 OEP 050 : 41,5 KW permanent à 6000 mn-1
