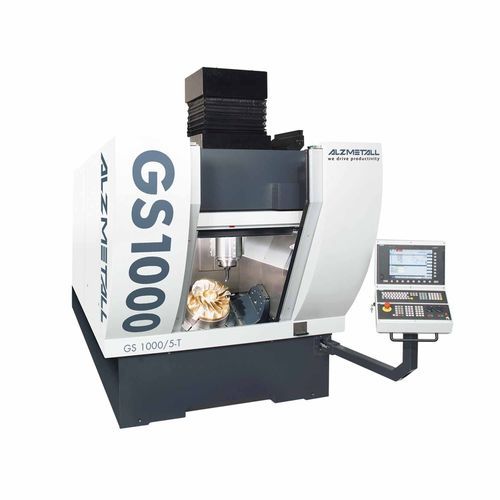

3-axis machining center GS 1000/5-Tvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- X travel
800 mm
(31.5 in)- Y travel
800 mm
(31.5 in)- Z travel
600 mm
(23.62 in)- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 12,000 rpm
(75,398 rad.min-1)- Power
Max.: 30 kW
(40.79 hp)Min.: 29.4 kW
(39.97 hp)
Description
Working range
Travel X/Y/Z-axis 800 / 800 / 600 mm
Distance spindle-table min./max. 223,5 / 823,5 mm
4th and 5th NC-axis (integrated)
Drive system at swivel and turning axis direct (with Torque motors)
Swivel range of the A-axis +140°,- 140°
Maximum swivel rpm A-axis 50
Rotation range of the C -axis 360° endless
Maximum Rpm in C -axis 100
Diameter C -axis table ø 630 [ø 800] mm
8 T-slots (DIN 650) 4 x 14 H12 and 4 x 14 H7
Radial arrangement 8 x 45°
Central opening in table ø 50 H7 mm
Maximum Table load 1000 [1500] kg
A-axis clearance ø 1070 mm
Workpiece diameter max. ø 930 mm
Table surface below A-axis 100 mm
Drive System X/Y/Z-axis
Digital AC servo motors
Maximum rapid travel X/Y/Z on TCP 60 [100] m/min
Maximum feed force X/Y/Z at 40% Power-On-Duration 10 kN
