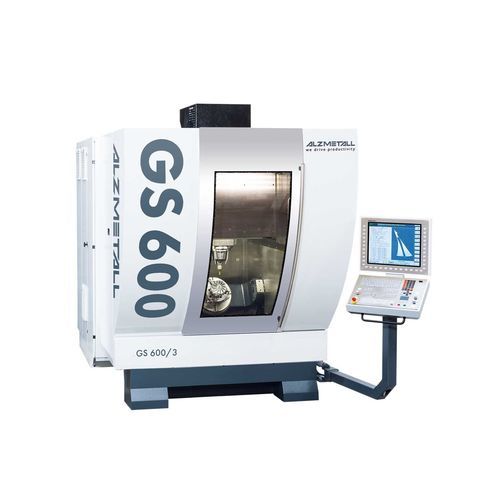

3-axis CNC machining center GS 600/3verticalgantryHSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Spindle mount
- HSK A-63
- Associated functions
- milling, drilling, grinding
- Applications
- for graphite machining
- X travel
460 mm
(18.11 in)- Y travel
600 mm
(23.62 in)- Z travel
400 mm
(15.75 in)- Power
26 kW
(35.35 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
750 kg
(1,653 lb)
Description
Grey Cast Iron and Spheroidal Graphite Cast Iron
Monobloc Travel-System-Carriage with incorporated Box-in-Box-System
2-fold Linear Guidance for X-Y-Travel System-Carriage and 4-fold Linear Guidance for Z-Axis with Travel-System-Carriage with integrated Motor-Spindle
Electrical Handwheels
3D -Touch Probes Infrared transmission
Tool Setting System
Camera and Screen
Tool-Magazines: Twin-Disc-Tool Magazine with 76 Tool Positions
Tool-Magazines: Rack-Type Magazines designed for 224 Tool Positions
Operating Supply Unit Set‘s: Bundle set‘s A, B, C cooling and cleaning circuit system up to 80 bar high pressure, on selection Scratch-Type or Hinge-Type-Conveyor
Mist Extraction Unit
Remote Diagnosis and Maintenance
Machining Center Acceptance: Workpiece according to ALZMETALL-Standard, on selection Customer-Workpiece (option)
Services: NC-Program-Training, Operator-Training for Heidenhain and Siemens and Machining Center Installation and Commissioning, Process development, Production
Assistance, Service and Maintenance
