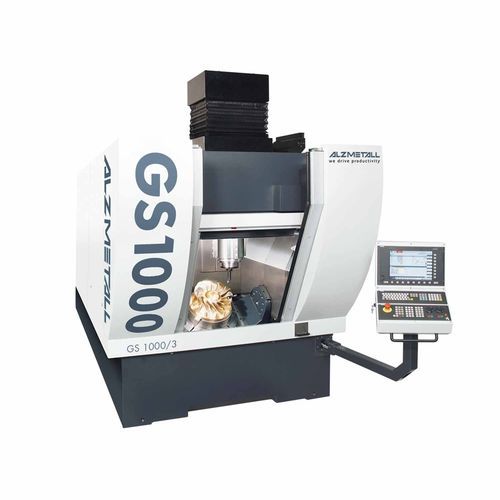

3-axis CNC machining center GS 1000/3verticalgantryHSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Spindle mount
- HSK A-63
- Number of tool stations
- 250 tools
- Associated functions
- milling, drilling, grinding
- Applications
- for graphite machining
- X travel
800 mm
(31.5 in)- Y travel
800 mm
(31.5 in)- Z travel
600 mm
(23.62 in)- Power
50 kW
(67.98 hp)- Work feed X-axis
75 m/min
- Work feed Y-axis
75 m/min
- Work feed Z-axis
75 m/min
- Table load capacity
1,800 kg
(3,968 lb)
Description
Grey Cast Iron and Spheroidal Graphite Cast Iron Machine Body and Frame components
Travel-System-Carriage with incorporated Box-in-Box-System – patented –
4-fold Linear Guidance for X-YTravel-System-Carriage and Z-Axis with integrated Motor-Spindle
Electrical Handwheels
3D -Touch Probes Infrared transmission
Multiple-Media-Coupling
Tool Setting System
Camera and Screen
Tool-Magazines: Twin magazine: up to 150 Tool positions, (Chain Magazine)
Operating Supply Unit Set‘s: Bundle set‘s A, B, C cooling and cleaning circuit system up to 80 bar high pressure, on selection Scratch-Type or Hinge-Type-Conveyor
Operating Supply Unit Set‘s: Coolant Cleaning Unit with Compact-Paper-Filter
Mist Extraction Unit
Remote Diagnosis and Maintenance
Machining Center Acceptance: Workpiece according to ALZMETALL-Standard, on selection Customer-Workpiece (option)
Services: NC-Program-Training, Operator-Training for Heidenhain and Siemens and Machining Center Installation and Commissioning, Process development, Production Assistance, Service and Maintenance
