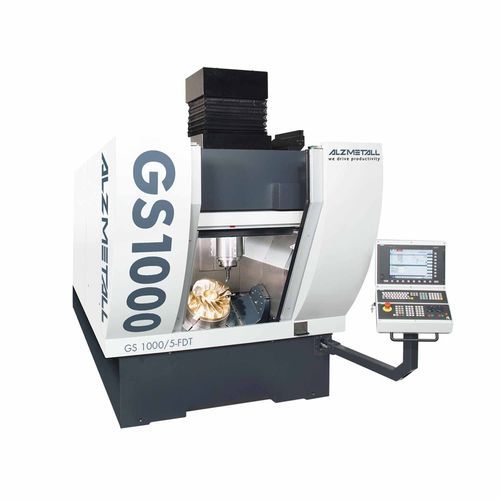

3-axis CNC machining center GS 1000/5-FDTverticalgantryHSK-T63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Spindle mount
- HSK-T63
- Number of tool stations
- 250 tools
- Associated functions
- milling, drilling, grinding
- X travel
800 mm
(31.5 in)- Y travel
800 mm
(31.5 in)- Z travel
600 mm
(23.62 in)- Power
50 kW
(67.98 hp)- Work feed X-axis
75 m/min
- Work feed Y-axis
75 m/min
- Work feed Z-axis
75 m/min
- Table load capacity
1,000 kg, 1,500 kg
(2,205 lb, 3,307 lb)
Description
Grey Cast Iron and Spheroidal Graphite Cast Iron Machine Body and Frame components
Travel-System-Carriage with incorporated Box-in-Box-System – patented –
4-fold Linear Guidance for X-YTravel-System-Carriage and Z-Axis with integrated Motor-Spindle
3-fold Torque-Drives for Swivel-Axis (A-Axis) and Rotary-Axis (C-Axis) at GS 1000/5-T and GS 1000/5-FDT
