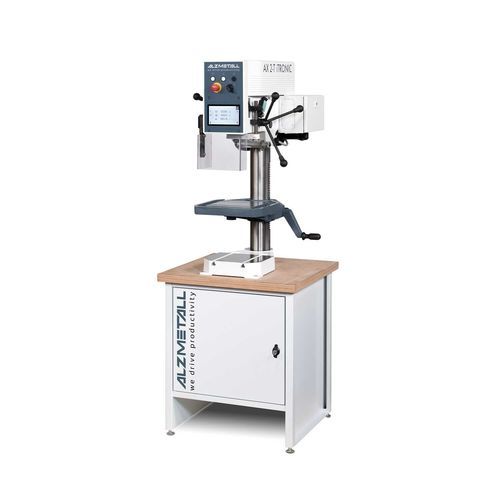

Vertical drilling machine AX 2-T iTRONICcolumn typebench-topfor steel
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, column type, bench-top
- Applications
- for steel
- Other characteristics
- variable speed
- Drilling diameter
23 mm
(0.91 in)- Power
600 W, 950 W
- Rotational speed
750 rpm, 1,500 rpm
(4,712.4 rad.min-1, 9,424.8 rad.min-1)
Description
TOP-QUALITY
drilling with complete options
Technische Daten
Standard Equipment
7“ TFT – LCD-MULTI-TOUCH Display
Tapping auto-reverse w/o foot switch
Spindle protection
Push button for starting the Right turn (CW), Push Button for starting the Left turn (CCW), Push Button for Spindle off
EMERGENCY-OFF switch
Main switch
Right (CW) and Left (CCW) rotation
Control Tension 24 Volts
Protection Clas IP 54
Lacquer
Options
LED machine light
Foot Pedal Reverse Switch for CW and CCW rotations during the tapping process
Coolant Attacment A
Coolant Attacment B
Technology Calculator in the Touch Display
Maximum Drill Depth Readout in the Touch Display
Precision Mechanical Depth Adjuster and fixed stop
Anchoring set
Packing
Packing for the Table/Bench (Pos. 09.1)
