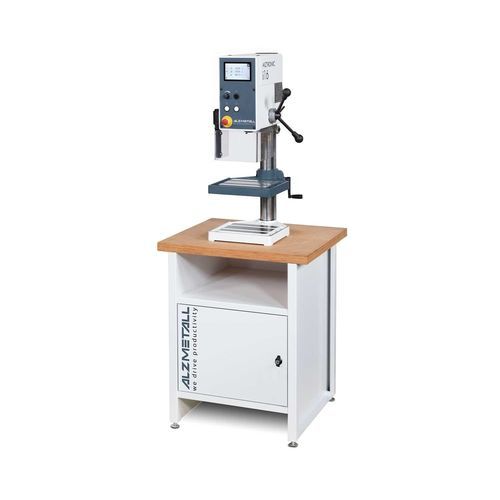

Vertical drilling machine ALZTRONIC i16column typebench-topfor steel
Add to favorites
Compare this product
Characteristics
- Structure
- vertical, column type, bench-top
- Applications
- for steel
- Drilling diameter
16 mm
(0.63 in)- Power
700 W
- Rotational speed
Max.: 2,000 rpm
(12,566.4 rad.min-1)Min.: 100 rpm
(628.3 rad.min-1)
Description
Fast precise TABLE DRILLING MACHINES 230 V for schools, trainees, laboratories, institutes and manufacture at a top entry-price.
Standard Equipment
AC motor
Plug
Stepless speed setting
Push button for starting the Right turn (CW),
Push Button for starting the Left turn (CCW),
Push Button for Spindle off (Spindle stop by brake function)
Spindle protection electrically secured
EMERGENCY-OFF switch
Main switch
Control Tension 24 Volts
Protection Clas IP 54
Lacquer
Options
LED machine light
Technology Calculator in the Touch Display
Maximum Drill Depth Readout in the Touch Display
Quick action drill chuck SPIRO SK 10
Quick action drill chuck SPIRO SK 13S
Packing for the Table/Bench (Pos. 09.)
