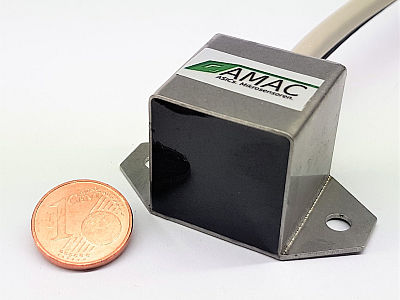

1-axis acceleration sensor AM-SW1D
vibratingdigitalsensitivity

1-axis acceleration sensor
1-axis acceleration sensor
Add to favorites
Compare this product


Characteristics

Number of axes
1-axis
Technology
vibrating
Other characteristics
sensitivity, digital, with smart shock detection
Frequency

7.5 kHz, 20 kHz

Description

• 1 axis vibration and shock sensor • Programmed 4 FIR-filter per channel • Internal clock • Set threshold value: voltage, temperature, for each input • channel • Real-time data transmission from ASIC, SPI master mode • Power-On-Reset (POR) • Configuration from EEPROM • Temperature sensor • Interfaces: SPI / CAN bus • Calibrated offset and integration capacitors The AM-SW1D is a vibration and shock sensor system with an integrated mixed signal circuit AM-CVC2D. The system delivers via the serial interface the digital measurement of the calibrated sensors for vibration (8k) and shock (20k). FIR parameters, temperature, and monitoring data such as threshold parameters can be also send via the SPI/ CAN serial interface. The resolution/sensitivity of the sensor is also programmed and set according to specific requirements*.
