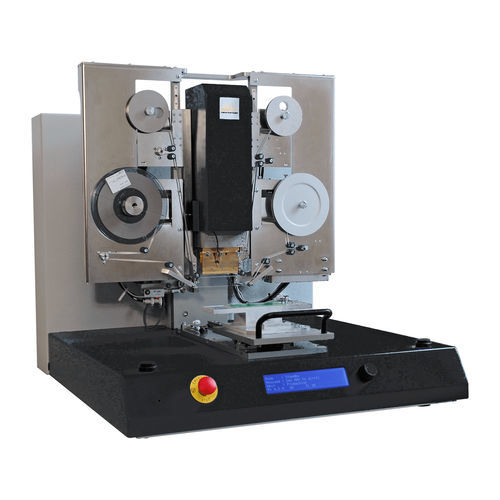

Printed circuit laminating machine NH-4000A

Formerly known as newhorizon ACF Laminating System Designed for fine-pitch ACF bonding applications (> 30 micron), the NH-4000A Series ACF Laminator uses a two- or three-step process to connect materials like flex-foil to glass or flex-foil to PCB. ACF Laminating/Pre-Bonding is achieved by dispensing and cutting the ACF tape, positioning it over the surface of the parts to be bonded, and moving the thermode into position. The flex is then moved into position to align the traces to the substrate, and the thermode is actuated to complete the bond. The basic systems includes a constant heat power supply and pneumatic bonding head. Options include the addition of interposer tape, alignment, and product jig modules. •Compact, flexible system •Left-right, front-rear, or rotary product handling
