Reflow soldering machine NH-3000A
hot barresistancerotary

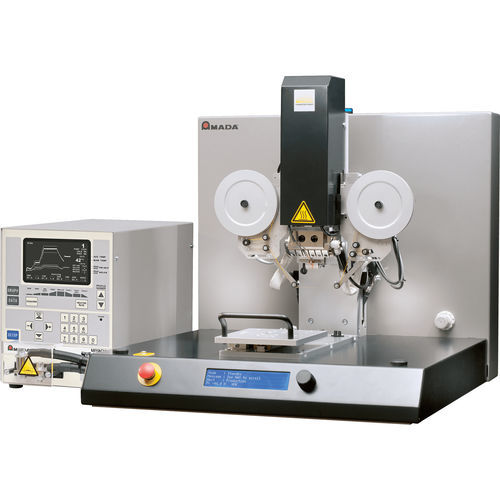

Reflow soldering machine - NH-3000A - AMADA WELD TECH Inc. - hot bar / resistance / rotary
Reflow soldering machine - NH-3000A - AMADA WELD TECH Inc. - hot bar / resistance / rotary
Reflow soldering machine - NH-3000A - AMADA WELD TECH Inc. - hot bar / resistance / rotary - image - 2
Reflow soldering machine - NH-3000A - AMADA WELD TECH Inc. - hot bar / resistance / rotary - image - 3
Add to favorites
Compare this product


Characteristics

Technique
reflow, hot bar, resistance, rotary
Operating mode
semi-automatic, linear, rotary, digital
Applications
for electronic components
Other characteristics
compact

Description

Formerly known as newhorizon MHSB AMADA WELD TECH’s NH-3000A Series ACF Bonding and Heat Staking machine is a fully integrated, reflow soldering machine which utilizes a pulsed heat thermode technology for ACF bonding and heat staking applications requiring between 60 and 750 Newtons force (6.12 – 76.5 Kgs, 13.49 – 168.6 lbs). The NH-3000A line is made up of four standard, ergonomically designed hot bar soldering machine models with optional product handling features such as linear slides and rotary tables. These hot bar resistance soldering systems are “customizable” to suit the customer’s specific technical requirements via optional plug & play modules. All modules are mounted on a robust frame construction. •Compact, Standard Systems •UF-4000A Pulsed Heat Reflow Soldering Power Supply •Robust Frame Construction •Active Integrated Cooling •X-Y Thermode Co-Planarity Adjustment •Electronic System Control •Pneumatic Bonding Head •Digital Force Readout
