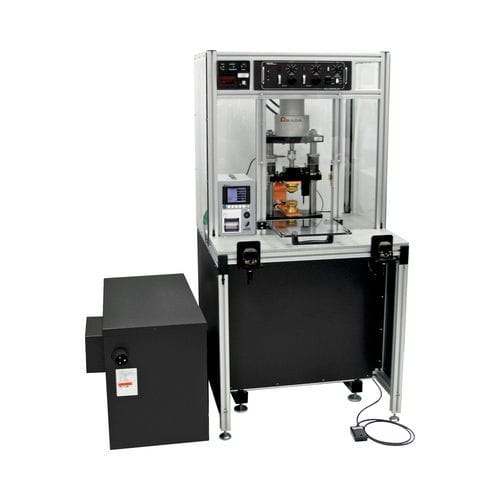

Capacitor discharge welding machine Pulsar Series

projectionmanualfor metal

The Pulsar Series capacitor discharge welding power supplies, combined with model KN-200A weld heads provide dependable, field proven cap welding solution for hermetic sealing of microelectronic packages and joining of a variety of metal parts. Built in the USA, the Pulsar Series offers a broad range of precision power choices and can be easily integrated into atmospheric enclosures to ensure high yield hermetic sealing results. •Capacitor discharge (CD) technology •Wide range of models offer from 1000-9000 joules of energy •“Weld inhibit” function accepts input from atmospheric enclosure instruments, such as oxygen analyzers and moisture monitors for integrated process control •“Weld fire” lockout monitors the capacitor bank charge and prevents firing if the energy level differs from the set point, ensuring repeatable weld pulses
