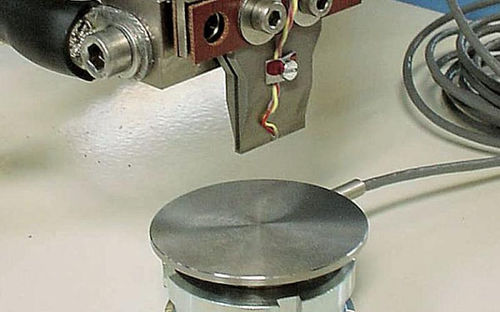

Pressure calibration system 67 W00 series

temperatureprocessdesk

In order to achieve and maintain a consistent product envrionment, constant process parameters are required. For Hot Bar Reflow Soldering, Heat-Seal Bonding, Heat Staking, ACF Laminating and ACF Final Bonding, the most important process parameters are bond pressure, thermode planarity and process temperature. AMADA WELD TECH equipement consists of reliable and stable components built to last. In order to ensure smooth operation within specifications and to monitor regular wear and tear over time it is vitally important to control process parameters constantly or selectively. AMADA WELD TECH offers a complete range of process calibration tools specifically designed to monitor production and processes accurately. - Regular system 'check-up' for constant process parameter quality. - Complete set of tools offering full process control. - Industrial tools for consistent production quality. - Force ranges 100 - 250 - 500 - 1000 -2500 Newton. - Display readout with overload indicator. - Force load-cell including universal applicable contact disk. - Accuracy +/- 1 % of full scale. - Power connection 230 VAC - Optional RS232 - 422/485 serial output for data storage. - Calibration certifacte included.
