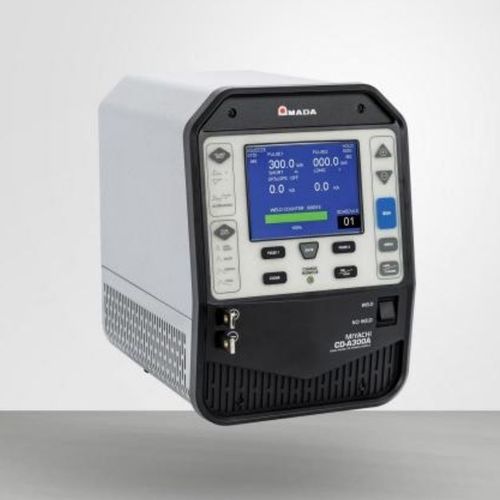

Capacitor discharge welder CD-A

electrode

The CD-A Advanced Capacitive Discharge Welder features dual pulse output control, internal pulse monitoring, optional polarity switching and is automation capable. The unit offers consistent welding output for repeatable process results, with ultrafast rise time for conductive material welding. Featuring fully controllable dual pulse output, the CD-A provides pulse shaping with 4 discrete pulse lengths, programmable squeeze and hold times and adjustable pulse separation. Furthermore, the units offer the ability to set limits around a schedule to prevent bad welds and a built-in peak current indicator which indicates the last weld peak current. The ability to change polarity – individual settings for positive, negative, or alternating polarity – allows for a way to balance weld nuggets and overcome the Peltier effect, as well as extend electrode life. The CD-A welder is automation ready and can be easily integrated into production lines. The unit can be programmed to communicate with a host computer or with an automation control system. Operators can set and store up to 63 schedules to quickly change between weld parameters. A schedule chaining feature lets users automatically switch between two different schedules. The power supplies enable rapid fire between pulses for quick welding of adjacent locations. The CD-A Advanced Capactive Discharcge Welder is ideal for battery tab welding, interconnects, honeycomb tacking and fine wire to pad applications. - Dual pulse function helps overcome surface inconsistencies - Built-in monitor measures peak current for both pulses for process monitoring
