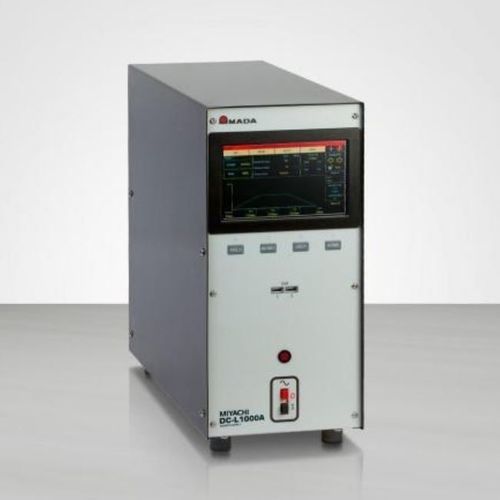

Resistance welding power supply DC-L series

spot weldingsingle-phaseDC

The DC-L Family of Linear DC Resistance Welding Power Supply are high performance 1,000 Amp precision Linear DC spot welding power supplies. Both models combine an easy-to-use touch panel interface, integrated database process control and monitoring with a high accuracy, zero ripple linear transistor output stage that delivers ultra-fast 10µs dynamic process response rates, with absolute closed loop 1amp incremental accuracy and repeatability. High speed, ultra low ripple closed loop output control for consistent welding process definition and control Constant Current, Voltage and Power modes with programmable multi-pulse combinations 1 amp steps to 1000A. Programmable part & weld checking coupled with optional displacement and force limit checking. Three phase 5% duty (DC-L1000A) and single phase (DC-L0600A) operational variants. Full TCP/IP Ethernet interfacing to internal and external SPC database systems. Associate and view PDF and text format work instructions and process manuals with weld schedules. Associate and view JPEG and BMP files with weld schedules for QC and process checking. 3 USB ports : USB memory stick transfer, mouse, keyboard, servo head drives, wireless etc. SMART weld head force control within weld schedules. High speed automation and communication ports with full remote control capability.
