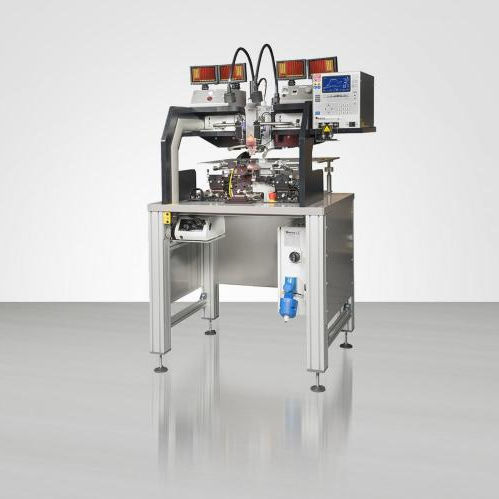

Bonding system EM

AMADA WELD TECH offers a full product line of LCD/ PDP Bonding and Repair Systems. The EM Series is designed for a wide variety of TAB and Flex sizes and can handle panel sizes ranging from 1" up to 65". The EM system is highly flexible and can be used for ACF tacking, ACF Final Bonding and Hot Bar soldering. EM systems have a flipper X-Y-Z-Phi module for accurate positioning. Multiple thermode dimensions are available and a quick connect block enables fast and easy thermode change. The system can be extended with an upgrade package for the high precision motorized bonding head. We also have seveveral modules, such as screen splitter function with PC, manual or automatic interposer system which can be added to the standard system. - Supporting all TAB/Flex sizes and almost all LCD/PDP panels - Fine pitch alignment - ACF tacking, Heat-Seal bonding - Hot Bar Reflow Soldering all in one system - Dual look-up cameras for alignment and track & marker recognition - Constant heat bonding technology with temperature controller and programmable timer - High precision pneumatic bonding head ensures consistent process results - Optional 1" to 6" panel support
