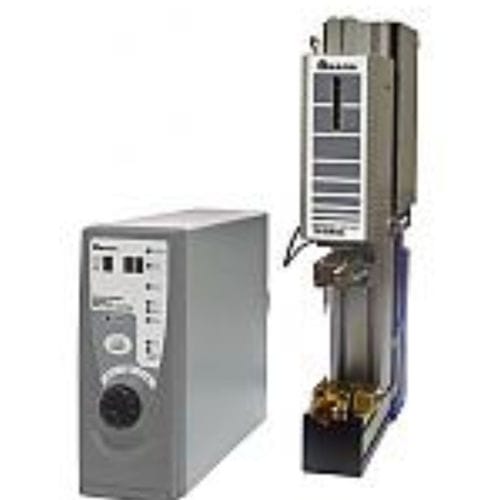

Resistance welding head 70 series

deskservo-drivenautomatic

Designed for use in automation or benchtop welding, AMADA WELD TECH's 70 Series Weld heads offer stable, repeatable electrode force for a wide range of resistance welding applications. Two different models are available, each equipped with an easy-to-program, state-of-the-art servo motor controller which allows the electrode positions to be precisely programmed and a speed of up to 32 different weld schedules. - Write and save up to 32 motion schedules - “Soft-touch” part clamping minimizes impact force and allows verification of part alignment prior to welding - Fast follow-up means less weld splash and more consistent welds - Individual speed control for “stroke to search” and “search to weld” increases flexibility and throughput; good for automation - Overforce protection ensures concise repeatable force, less weld splash, and reduced part deformation - Constant applied force - independent of part height - ensures weld repeatability - Easy programming and fast, efficient schedule adjustment - “Home” position allows for easy access during maintenance - Electrode in the “Upstop” position in the “Ready” state - The first level of the footswitch moves the electrode down to the “Search” position at a programmable “Soft-touch” speed - The second level of the footswitch applies the pre-set welding force, with no overforce - Programmable “Downstop” inhibits welding if parts are not present
