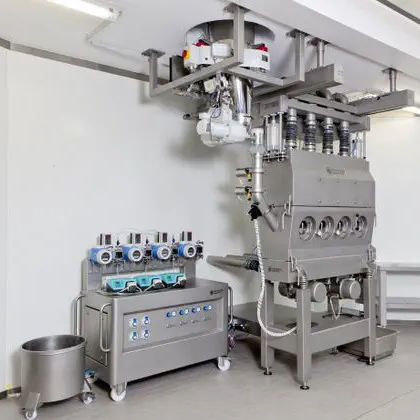

Fluidized bed dryer Conti FB Pilot

spraycontinuousfor processing applications

Conti FB Pilot plants are extremely flexible systems of various sizes which allow testing of all continuous fluidized bed processes and of almost any product: • Drying and Cooling of bulk materials • Agglomeration of powdery substances • Spray Granulation for shaping liquids • Coating for product refinement • Microencapsulation of active ingredients The adaptation of a multitude of process parameters allows to develop products with precisely defined properties. Reproducible procedures ensure a scale-up to production conditions. Neuhaus Neotec Conti FB pilot plants are used by demanding lines such as the food industry, the fine chemical and pharmaceutical industry and biotechnology. Design details • Continuous operating mode • Throughput capacities from 5-50kg/h • Nozzles in each zone, height adjustable • Removable nozzles, also during the process • Product weirs for sectional division • Vibration for fluidization of difficult / sticky products • Inflow velocity from 0.3 to 2 m/s • Supply air temperature up to 180 °C • Humidification / dehumidification of supply air • Top- and Bottom-Spray
