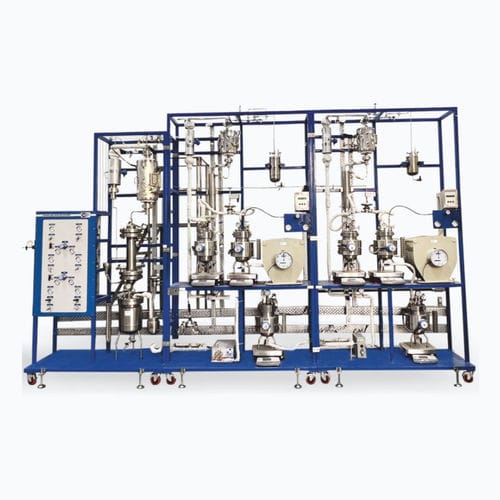

Fluidized bed reactor

continuousbatchlaboratory

Amar has been leading manufacturer and exporter of fluidized bed reactors and systems in India since past many years. Features • Volume: 500 ml to 200 ltr. • Pressure Range: up to 12 bar • Temperature Range: up to 1050°C • A fluidized bed reactor is a vertical cylindrical tube having 2 sections i.e., reaction section & disengagement section. • Even temperature distribution throughout the burning zone, while solid catalyst particles are freely suspended using gas of high velocity. • Product is collected from top & solid residue collected from the bottom. • Solid Feed: Batch/Continuous. • Uniform particle mixing. • Uniform temperature gradients. • Catalyst/solid can be fed from top/bottom while gas/liquid is fed from the bottom. • Explosion proof plants for hazardous area. • Automation: Customisable unit is offered for gas / liquid / solid feed combinations, product outlets, multi zone heating furnaces etc. with integrated controls, high level of safety, automation, and SCADA software. • Application: Applications may vary considerably from industry to industry and may include, conversion of coal-derived products, syngas generation, pyrolysis reactions, biomass / coal gasification reactions, conversion of gaseous reactants into fuels, liquefaction reactions, etc.
