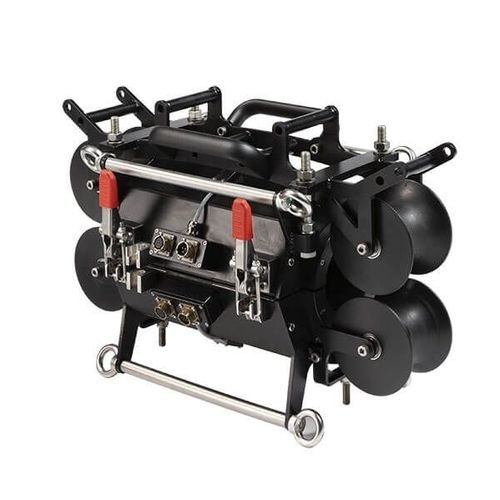

Device able to perform non-destructive tests on wire ropes with diameter ranging from 60 to 80 mm.
Main features are:
• Segnale LF e LMA acquisito digitalmente;
• Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings;
• fully integrated Encoder system that localizes the fault
Weight : 55 kg
Number of ropes that can check simultaneously : 1
Dimensions : 60 × 32 × 40 cm
Encoder and centering system : Included
IP66
Compliance with EN12927 : Yes
Sensors kit
Standard range : 80 mm
Minimum diameter that can be checked (with reduction kit) : 40 mm
Number of reduction kits : 2
Tool features
Field source : Permanent magnets (NdFeB)
Signal accuracy : Compliant with EN12927
Type of sensors : Coils; Hall Effect Sensors
Max inspection speed 0,02 — 30 m/s : Standard speed range, higher than 8 m/s upon request
Type of signal : LF; LMA (upon request)
