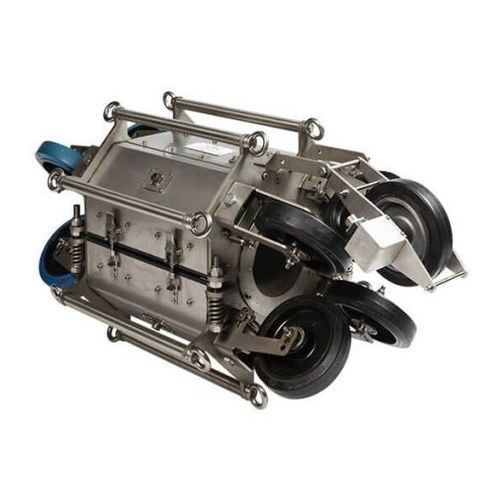

Non-destructive inspection device ROPE Series

for wire ropequality

Device able to perform non-destructive tests on wire ropes with diameter ranging from 90 to 170 mm. Main features are: • Digital acquisition of LF and LMA signals; • Internal centering system (mechanically guided by wheels) that improves signal quality and friction reduction in the bushings; • Fully integrated Encoder system that localizes the fault. Weight : 200 kg Number of ropes that can check simultaneously : 1 Dimensions : 985 × 550 × 520cm Encoder and centering system : Included IP66 Compliance with EN12927 : Yes, up to 120 mm (max diameter that can be certified) Sensors kit Standard range : 170 - 130 - 110 mm Minimum diameter that can be checked (with reduction kit) : 90 mm Number of reduction kits : Depending on the larger diameter Tool features Field source : Permanent magnets (NdFeB) Signal accuracy : Compliant with EN12927 and ASTM E1571 Type of sensors : Coils; Hall Effect Sensors Max inspection speed 0,02 — 30 m/s : Standard speed range, higher than 8 m/s upon request Type of signal : LF; LMA (upon request)
