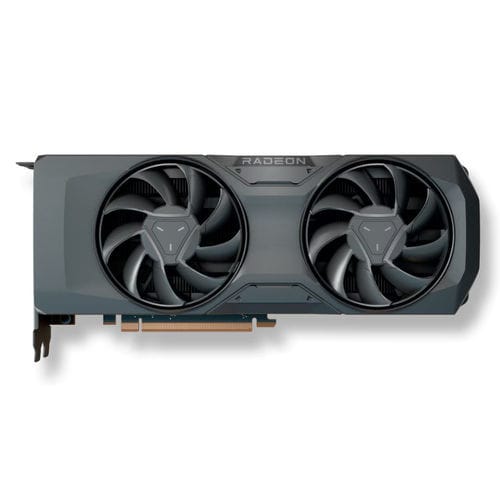

AMD Radeon graphics card Radeon™ RX 7700 XT

GDDR6Windows 10Windows 11

The AMD Radeon™ RX 7700 XT desktop graphics card is designed for next-generation gaming and streaming experiences at 1440p. Compute Units 54 Boost Frequency Up to 2544 MHz Game Frequency 2171 MHz Ray Accelerators 54 AI Accelerators 108 Peak Pixel Fill-Rate Up to 244 GP/s Peak Texture Fill-Rate Up to 550 GT/s Peak Half Precision Compute Performance 70 TFLOPs Peak Single Precision Compute Performance 35 TFLOPs ROPs 96 Stream Processors 3456 Texture Units 216 Transistor Count 28.1 B Requirements Typical Board Power (Desktop) 245 W Minimum PSU Recommendation 700W Recommended Power Supply Recommended power supply for AMD Radeon RX 7700 XT graphics card is minimum 700W or greater with 12V output > 54A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ. GD-223. GPU Memory AMD Infinity Cache Technology 48 MB Memory Speed Up to 18 Gbps Memory Interface 192-bit Memory Bandwidth Up to 432 GB/s Effective Memory Bandwidth Up to 1995 GB/s Supported Rendering Format HDMI™ 4K Support Yes 4K H264 Decode Yes 4K H264 Encode Yes H265/HEVC Decode Yes H265/HEVC Encode Yes AV1 Decode Yes AV1 Encode Yes Connectivity DisplayPort 2.1 HDMI™ 2.1 Dimensions Length 267 mm Slots 2.5
