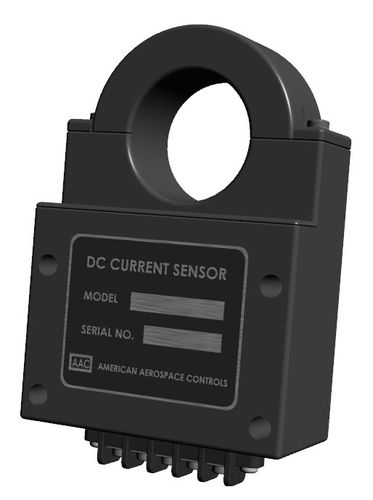

Magneto-resistive current transducer ±150A ... ±2500A | 9000 Series

fixedDCsolid-core

Model 9000 Bidirectional Current Transducer, with removable yoke, provides an isolated 0 to ±5Vdc output proportional to the DC input current. The transducers have an input current range from ±150Adc to ±2500Adc, and the transducers withstand, without performance degradation or damage, a continuous unlimited overload. The 9000 Series delivers performance accuracy over a temperature range from -25°C to +75°C and operate with a supply voltage from ±15Vdc ±1Vdc. The unit’s molded construction and internal epoxy encapsulation creates a durable transducer. The 9000 Bidirectional Current Transducercomes standard with a 1.50” (3.81cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer excellent for existing or retro-fit applications, as well as moveable multi-point monitoring. The transducers are available with a barrier or connector interface, with the connector option available with mating connector.
