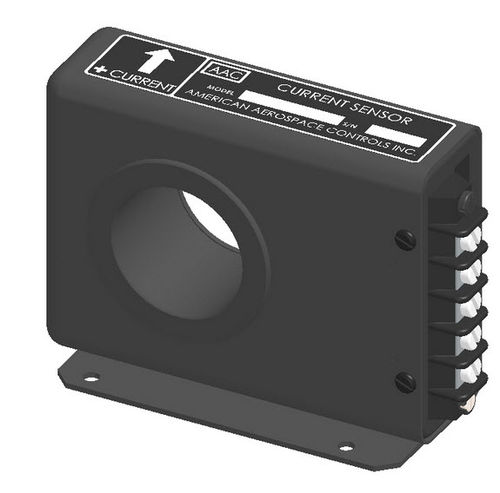

Hall effect current sensor ±600A ... ±2000A | 944 Series

fixedDC

Model 944 Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current. The sensors have an input current range from ±600Adc to ±2000Adc and the transducers withstand, without performance degradation or damage, a continuous overload of ±5000Adc. The 944 Series delivers performance accuracy over a temperature range from -55°C to +85°C, measures input current with a frequency range from DC to 20kHz and operates with a supply voltage of ±15Vdc ±1Vdc. The unit’s powder coated aluminum exterior, with internal epoxy encapsulation, creates a rugged and durable sensor, withstanding environments of moisture, humidity, vibration, shock and altitude. The 944 Bidirectional Current Transducer comes standard with a 1.38” (3.51 cm) thru-hole and are available with a barrier or connector interface, with the connector options available with mating connectors.
