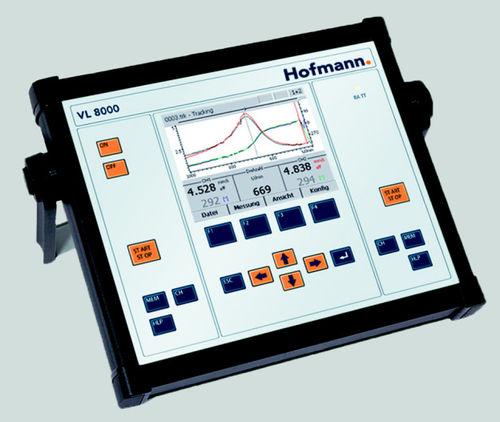

Balancing vibration meter VL 8000

portableFFT

VL 8000 is a high-end field balancing instrument with advanced vibration measurement, vibration analysis and machine diagnosis features. *Features Intuitive operation with Windows interface Clear presentation of results on very large colour LCD Very wide speed range up to 300,000 RPM Systematic detection of damage through envelope analysis *Functions Unbalance measurement in one or two planes Conversion of unbalance correction into practical balancing methods (e.g. drilling) Frequency analysis to determine the spectral components of a vibration Tracking analysis to capture the run-up or coast-down of a machine and to determine the resonances Envelope analysis to detect damage of rolling bearings or gears USB port to transmit the measurement values to a PC Offline PC software *Applications Measuring vibrations on bearings and machine housings Field balancing on site Recording the condition of rolling bearings Observing and recording vibration levels Identifying frequencies in a vibration Detecting resonance points and identifying transfer functions Detecting machine damage
