Dynamic balancing system AB 9000

for grinding wheelsfor rotorsfor fans

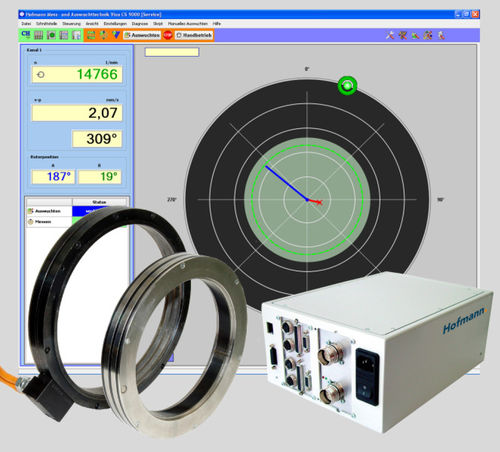

AB 9000 is the innovative active balancing system for the automatic balancing of all types of rotors. *Features Automatic (active) balancing of rotors (e.g. grinding wheels, grinding spindles, turning chucks, fans) in one or two planes with unbalance monitoring. Active balancing during operation without having to stop the machine. Ring shaped balancing unit for efficient, space-saving integration into the rotor. Balancing to very high rotational speeds in very short time by fast electro-magnetic actuator and adaptive balancing process. Non-contact, wear-free transmission of energy for the actuator positioning the balancing weights. Pre-balancing software for manual correction of basic unbalance; AB 9000 then only balances the new operational unbalances. Neutralising of balancing unit possible, e.g. for pre-balancing. Indication of remaining balancing capacity. PC operation software *Applications Automatic (active) balancing of all types of rotors. Balancing during operation without having to stop the machine. Inducing test unbalances for system identification Generating unbalances during acceptance test.
