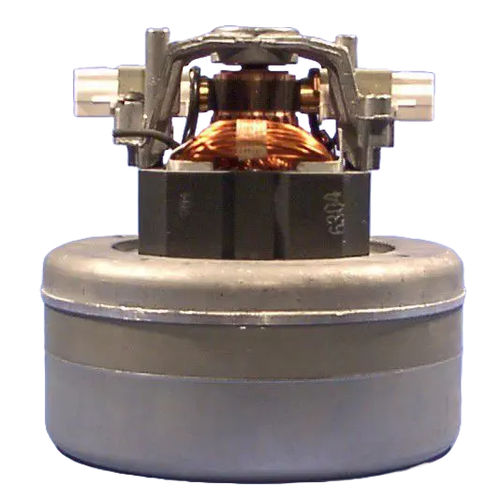

AC motor Lamb®

brushed220 V230 V

AMETEK manufactures a wide range of thru-flow motors for the commercial floor care, central vacuum, commercial and industrial applications. In thru-flow motors, the working air travels through the fan system and is discharged directly over the motor windings as it exits, so the working air also provides the cooling air for the motor. Typical applications are mostly in dry vacuum conditions since the working air is also cooling the motor. Thru-Flow motors are available in single and multiple stages. the stages are used to create more pressure if used as a blower or more lift if used as a vacuum. As single stage motors typically have the highest air flow and lowest vacuum levels. Adding fan stages increases the vacuum capability of the unit but reduces the air flow. This is because of increased impedance to air flow through the system, the result of addition fans (rotating and stationary) through which the air must pass. DESCRIPTION -5.7" / 145mm diameter -Dual bail bearings -Single speed -Thru-flow discharge -Thermoset end bracket -Aluminum commutator bracket DESIGN APPLICATION -Equipment operating in environments not requiring séparation of working air from motor ventilating air -Designed to handle clean, dry, filtered air only SPECIAL FEATURES -UL recognized, category PRGY2 (E47185) -Provision for grounding -Skeleton frame design -Tapered fan System -The Lamb vacuum motor line offers a wide range of performance levels to meet design needs
