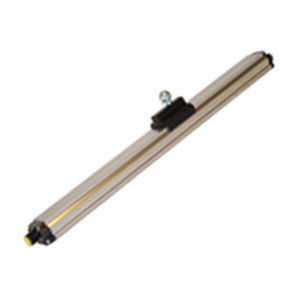

Linear displacement transducer 955D Brik Gen III

non-contactmagnetostrictivedigital

The 955D Brik Linear Displacement Transducer (LDT) is an accurate, non-contact linear position sensor in an economical, low profile package. The Brik is a self-contained unit and does not have a can or head assembly. All of the electronics are incorporated in the sensor which is less than one inch tall. The 955D is available in digital (Start/Stop, PWM and Control Pulse) outputs. The Brik can be ordered in span lengths from 5 inches to 180 inches long in 0.1 inch increments. The magnet slide is designed to move effortlessly along the sensor in guide tracks or a floating magnet assembly can be positioned above the unit. Applications include: Presses, injection molding, lumber, extrusion, roll positioning, dancer control and many more.
