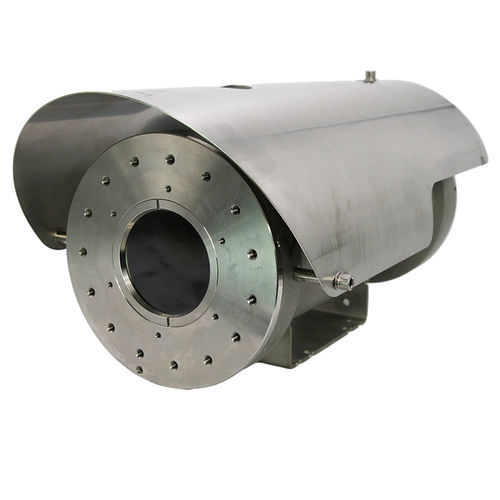

Hazardous area housing EXSH1

compactcylindricalstainless steel

The new EXSH1 flame-proof housing allows the LWIR-640 imager to be used in hazardous areas. Its high specification means that it is suitable for use in almost any application in the harshest of environmental conditions. Multiple certifications mean that a common specification can be used for worldwide applications, greatly simplifying the task of specifying and quoting the product. The enclosure has a certified temperature range of -40 to +70 °C (-40 to 158 °F) without additional cooling. Ingress protection to IP66 and IP68 means that it can be exposed to dust, water immersion and high-pressure water jets. The enclosure is manufactured from 316 / 316L stainless steel and is highly resistant to corrosion. HAZARDOUS INSTALLATION Ideal for installation in the harshest environments including those where a high probability of explosive mixtures may be present. WIDE TEMPERATURE RANGE The system can be installed in a vast range of areas where temperature may affect unprotected products. SUITABLE FOR GAS AND DUST HAZARDS The system is certified for use in areas with dust and gas hazards. HIGH LEVELS OF PROTECTION Extremely high degree of ingress protection, and highly resistant to corrosion. SAFETY ENCLOSURE The enclosure does not require an internal purge air for safety. GRIDLESS DESIGN The window does not require a protective grid, allowing an unobstructed field of view. ACCESSORIES A range of mounting accessories available to suit many industrial applications.
