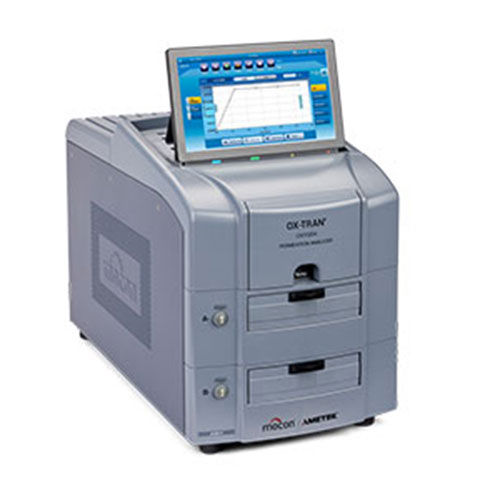

Gas permeability tester OX-TRAN 2/28 H

for oxygen transmission ratefor filmfor packaging

The OX-TRAN 2/28 H with its unique 4 cell capability it can test four barrier samples at the same time providing twice the throughput of traditional OTR instruments. The new dual film horizontal cartridge is removable for easy sample preparation and the user-friendly operator interface provides real time status of testing against target limits. Highest Accuracy • - Patented Coulox® sensor is the only absolute Coulometric sensor on market, never requiring calibration • - Low detection levels down to 0.05 cc/(m2*day) • - Fully automated temperature and flow controls simplify testing and provide unparalleled repeatability High Throughput • - Industries fastest sensor response time allows shorter overall test times • - Dual film removable test cartridges allow testing of 4 samples at a time requiring less space • - Automated test method can start a test by a single press of a button • - TruSeal gas flushed perimeter sealing can eliminate the need for absolute zero in many tests thus shortening overall test times The OX-TRAN 2/28 H high throughput analyzers can test the Oxygen Transmission Rate (OTR) on films from low to high barriers without humidification. It uses MOCON’s patented Coulox absolute (intrinsic) coulometric sensor requires no calibration and is the base for the ASTM standard D3985. This analyzer provides very accurate and repeatable test results within a wide detection range from 0.05 to 200 cc/(m2*day). The 4-cell capability allows for triplicate testing with or without a reference film in the same test. The option to run a known standard as a control improves the confidence in the results.
