AC/DC power supply 15 - 250 V, 0 - 6 A | Sorensen XEL series

regulatedtabletopdigital

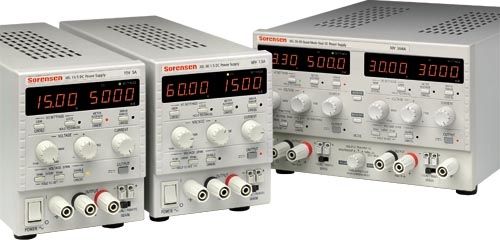

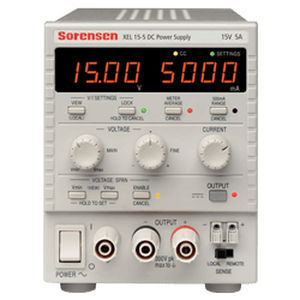

The Sorensen XEL benchtop power supply is as easy to use as simple analog power supplies but offers the flexibility of advanced digital features. The user interface allows easy control with single-turn knobs including a fine control knob for voltage. This easy-to-use interface is complemented by V-Span, S-lock and Output Enable functions. V-Span allows the user to set a maximum and minimum value over which the knob control operates. This provides more precise control over the voltage as the knob operates over a narrow range as well as protecting devices under test by limiting the maximum voltage. S-Lock provides an easy method to output a regulated fixed voltage. Output Enable lets the user setup the desired voltage and current levels prior to actually turning on the output. All of these features in a laboratory bench supply are only found in the XEL series. The programming "P" models include LXI Class C Ethernet, USB, RS-232 and analog remote control. The option "GP" inlcudes GPIB programming plus all of the interface methods included with the "P" models described above. This remote programming capability makes the XEL-P models well suited for system or ATE integration.
