Hydraulic force gauge 338 seriescompact
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Options and accessories
- compact
- Rated load
Max.: 14,000 lb
(6,350.29 kg)Min.: 90 lb
(40.82 kg)- Rated force
Max.: 63,000 N
Min.: 400 N
Description

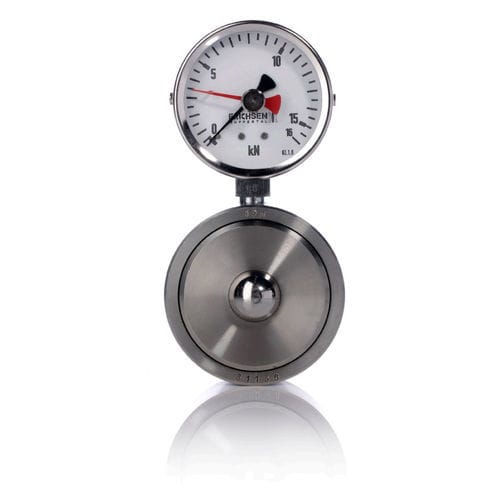

The robust construction of this hydraulic force gauge from Erichsen Wuppertal is suitable for rough operating conditions on machines and installations and is especially suited for large surfaces. It can be used for occasional spot checks as well as integrated in a permanent installation.
This Erichsen force gauge comes with an alignment ball for easy alignment of your load.
The standard instrument is fitted with a 63 mm diameter gauge with maximum reading pointer.
Compact design
• Durable, robust construction
• Ball feature for easy alignment of your load
• Standard with a max. reading pointer
• Load Range; 400N (90Lbs) to 63kN (14,000Lbs)
• Accuracy: 1.6% of Full Scale
