Voltage data acquisition module EX1403A

power16-channelbuilt-in

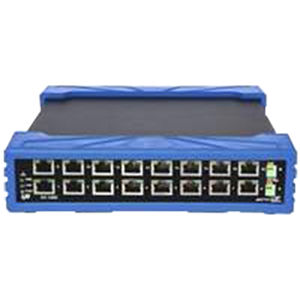

16-Channel bridge and strain gauge measurement instrument • 24-bit, delta-sigma ADC, simultaneous sampling • Programmable Sample Rate up to 128kSPS • Full, Half & Quarter Bridge with 120Ω, 350Ω & 1kΩ bridge completion • Voltage Excitation: 0.5V to 10V • Current Excitation: 0.46mA • 2-Wire & 4-Wire Ohms/RTD • Bridge Zero Balancing • Built-In-Self-Test (BIST) • Strain Lead Wire Calibration • Shunt Calibration: 50kΩ, 100kΩ & External provided by User • TEDS Support • LXI Ethernet Interface • IEEE-1588 Synchronization • Power over Ethernet (PoE) or 10–50 V DC input • Built-in Parallel Data Streaming • Full-featured Embedded Web Interface • Compact 1U Half-rack Form Factor The EX1403A Precision Bridge and Strain Gauge Instrument sets a new standard for strain and bridge measurements, delivering the highest performance measurements possible while controlling overall test hardware costs. Sixteen channels of strain or voltage, independent 24-bit ADCs per channel, extensive software-selectable filtering, and independent signal conditioning paths deliver exceptional accuracy and reliability.
