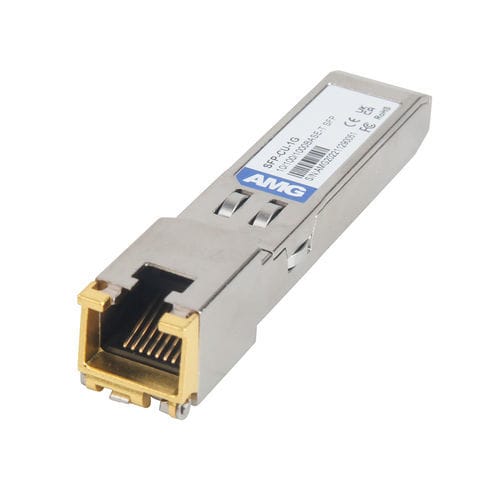

Ethernet transceiver SFP-CU-1G

monitoringmultimodedata

SFP Copper, 10/100/1000BASE-T RJ45 Port, 1000BASE-X SFP Interface, 100m, -40°C to +85°C Features Compatible with most 1000BASE-X SFP Ports Supports Ethernet speeds of up to 1000Mbps Hot pluggable design allows for easy field replacement or upgrades Distances up to 100m (Cat5E or higher) INF-8074 compliant Low EMI metal housing with excellent ESD protection Programmed and tested in the UK Industry standard Small Form-Factor Pluggable (MSA compliant) AMG Lifetime Support Warranty The AMG SFP-1G series are industrial high speed 1000Mb Ethernet SFP’s offering support for multiple cable types including copper (Cat5E or higher) as well as Multimode or Singlemode optical fibre. The units are compatible with most 1000BASE-X SFP ports on Ethernet switches and media converters¹ and feature industry standard LC connectors for fibre models and RJ45 connectors for copper models. The SFP modules are a perfect solution for extending the capability of SFP enabled Ethernet devices to support links from remote locations which are beyond the normal 100m (328ft) distance limit of copper Ethernet standards. Each optical fibre model supports full Digital Diagnostic Monitoring (DDM) to provide the user with valuable information on critical operating parameters such as device temperature, Tx and Rx optical power levels, speed, optical wavelength as well as device part code, serial number and manufacturer data.
