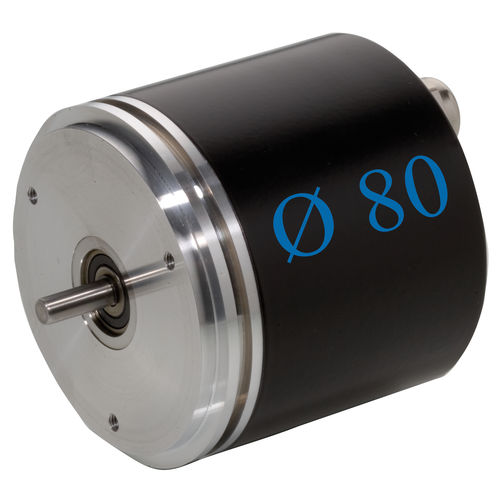

Incremental rotary encoder AMI 300opticalsolid-shaftdigital
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- solid-shaft
- Output signal
- digital, RS-422
- Material
- aluminum
- Protection level
- rugged, IP67, IP64
- Applications
- industrial
- Housing diameter
80 mm
(3.15 in)
Description
Pulses:
Each pulse possible up to 10.000
Interpolation internal 2 ... 50 times interpolation optional
Electrical Data:
Supply voltage 5V, 5-30V
Output voltage TTL, HTL, SinCos
Current consumption unloaded max. 120mA
Mechanical Data
Housing diameter 80mm
Shaft Ø6 and 10 mm, stainless steel
Shaft load axial 10 N, radial 20 N
Rotating speed max. 10.000 rpm
Working temperature 0° C ... +80° C
Vibration 10 g (20 ... 2.000 Hz)
Shock 100 g (11 ms)
Ingress protection IP 64 on shaft (optional IP 67)
2014/30/EU EMV-rules DIN EN 61000-6-2, DIN EN 61000-6-3
