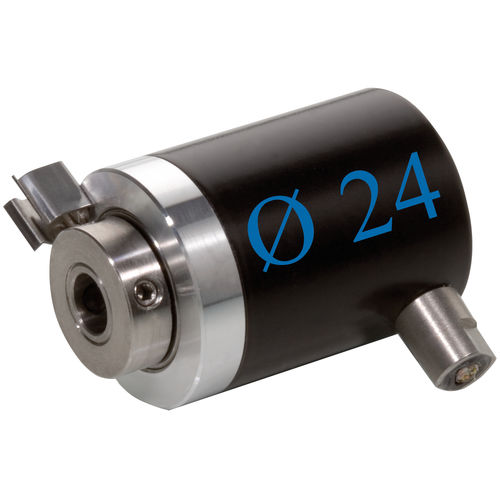

Incremental rotary encoder AMI 501opticalblind-shaftdigital
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- blind-shaft
- Output signal
- digital, RS-422
- Material
- aluminum, stainless steel
- Protection level
- IP64
- Applications
- industrial
- Other characteristics
- compact, miniature, high-accuracy
- Housing diameter
24 mm
(0.94 in)
Description
Pulses:
16, 36, 100, 500, 1000, 1024, 2000
aditionally on request
Electrical Data:
Supply voltage 5V, 5-30V
Output voltage TTL, HTL
Current consumption unloaded max. 120mA
Mechanical Data:
Housing diameter (24mm)
Shaft Ø 3 ... 6 mm, stainless steel
Shaft load axial 10 N, radial 20 N
Rotating speed max. 10.000 rpm
Working temperature 0° C ... +80° C
Vibration 10 g (20 ... 2.000 Hz)
Shock 100 g (11 ms)
Ingress protection IP 64 on shaft
2014/30/EU EMV-rules DIN EN 61000-6-2, DIN EN 61000-6-3
Catalogs
AMI 501/502
1 Pages
AMI Catalogue
36 Pages
