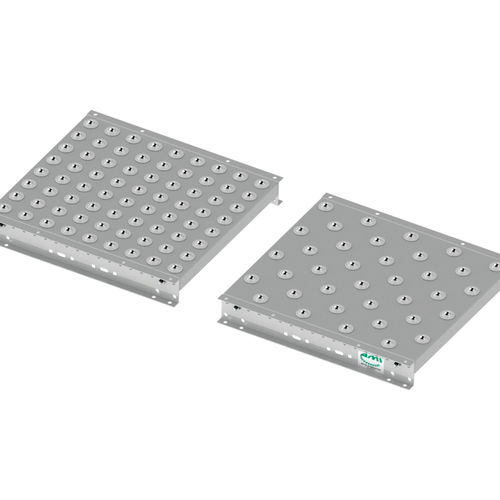

Ball transfer table KRT70

Ball roller table KRT70 The KRT70 ball roller table is used, for instance, on work / assembly stations or for installation in roller conveyor systems. The use of ball tables makes it easily to change the conveyor direction for products with fixed bases through a manual operation. TECHNICAL DATA Carrying capacity (max.) KRT 15- Ø15 mm/ 120 kg /m² ; KRT 22- Ø22 mm/ 120 kg /m² Ambient temperature 0 to +50 °C Width 300 - 1200 mm (in 50 mm increments) Roller pitch ball roller Ø15 - 50 / 62,5 / 75 / 100 / 125 / 150 / 200 mm Roller pitch ball roller Ø22 - 62,5 / 75 / 100 / 125 / 150 / 200 mm Module length min. 250 mm or 5x roller pitch up to max. 3.000 mm, or a multiple of the roller pitch Roller type Steel ball with sheet metal housing Ball roller diameter Ø 15 mm, Ø 22 mm Arrangement straight or offset by 45° Structure rugged sheet metal construction, galvanized steel, powder coated or stainless steel depending on version Frame U-profile 20/60/20x2 mm. Galvanised steel**, profile height 60 mm. Also available as a ball-roller-field designed for retrofitting. *Surface load: Reference value at width NB 300, span 1.5 m and roller pitch 62.5 mm **others on request
