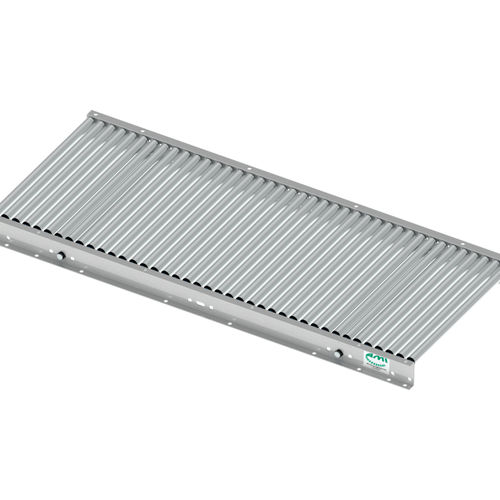

Roller conveyor LRB20-62

gravitylight-dutyfor assembly

Light-duty roller conveyor LRB20-62 The economical LRB 20-62 light duty roller conveyor is used for gravity-operated transport of small cargo via gradient. The LRB 20-62 light duty roller conveyor is primarily used in manual assembly. TECHNICAL DATA Carrying capacity (max.) PVC-Roller 30 kg/m*, Steel-Roller 60 kg/m*, Aluminium-Roller 60 kg/m* Decline 2-5%, depending on characteristics and weight Ambient temperature 0 to +50 °C Eidth 200 - 500 mm (in 50 mm increments) Roller pitch 25 mm Length a multiple of the roller pitch (min. 2x) up to max. 3.000 mm Roller type Smooth-running roller Roller diameter 20 mm Roller material Galvanised steel, PVC, Aluminium Frame U-Profilrahmen 20/60/20x2 mm, Galvanised steel**, profile height 60 mm, the top edge of the rollers is 1.5 mm above the U-profile frame *Surface load: Reference value at width NB 300, span 1.5 m and roller pitch 62.5 mm **others on request
