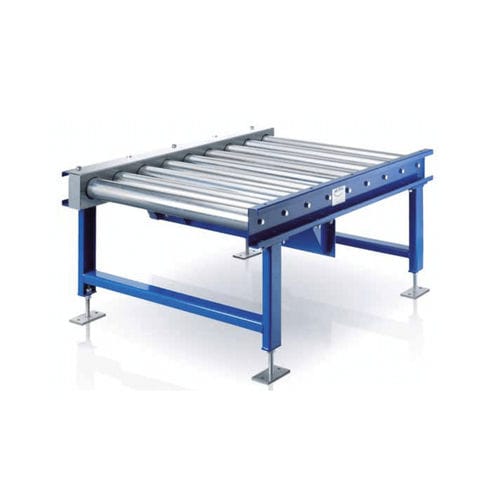

Roller conveyor ARF89-KÜ

horizontaltransportpallet

Roller conveyor ARF89-KÜ The ARF89-KÜ roller conveyor is used for the horizontal transport of charge carriers such as pallets, pallet cages and trays. It is suitable for automated transport of cargo weights up to approx. 2,500 kg/m. Protective devices are integrated onto the roller conveyor. TECHNICAL DATA Line load (max.) 2500 kg/m Ambient temperature -0 to +40 °C Installation area dry operation in enclosed facilities Width 400 - 1600 mm Length 750 - 8000 mm Roller pitch 95,25 / 127,00 / 158,75 / 190,50 (Standard) / 198,44 / 206,38 mm Roller Steel pipe D89 mm, galvanised Drive power 0,37 - 1,5 kW;Connection for 220/240 - 380/415 V, 50 Hz. Protective class IP 54 Speed (max.) 0,5 m/s Frame C-profile frame 50/150 mm, powder-coated steel ** Accessories Fixed and adjustable lateral guides End stop impact protection supports Feed centring devices Step plates / bridges Oil pans Sensor brackets Sensors Flanges Protective housing
