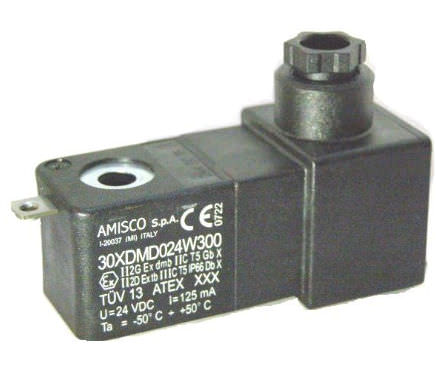

2-way solenoid valve 3009M Ex m

NONCair

3009M Ex m 94/9/CE ATEX AMISCO has completed the EVI7 S9 solenoid system with a special coil for pneumatic applications in potentially explosive ambient (group II), that fullfills the requirements of EN 60079-0, EN 60079-18, EN 61241-0, EN 61241-18, for protection mode “m”. The type 3009M Ex m coil is supplied with 1.2m cable connection, other lenghts (from 1.5m to 10m) are available on request. The coil is certified by CESI in thermal class T5 (with coil surface temperature max 100°C) or T4 (with coil surface temperature max 135°C). Ec-Type Examination Certificate number: CESI 02 ATEX 142 X and extension N° 02/07. Notification number: CESI 03 ATEX 075 Q. The protection is assured by a thermal fuse that, in case of demage, disconnects the coil from power. The product is developed to be used in ambients with temperature range from –15°C to +50°C, and it has a power consumption of 3.8W for type T4 and 3W for type T5. The coil fits all Amisco standard operators 3/2 or 2/2 way NC or NO, threaded or flange types. All main voltages are available. For other technical specifications see below and bachwards.
